Changes and new features introduced with HS4Touch
Notable Features and Improvements
HS4Touch includes many tweaks and improvements over HS3Touch. This list includes the most noteworthy changes.
-
Better support for 4K screens (scaling toolbars and palettes)
-
Camera property added for easier inclusion of cameras integrated with HS4
-
Right-clicking on an element opens a menu with these options: Actions When Released, Actions When Pressed, Select Normal Image, Select Pressed Image, Set Association, Bring Forward, Send Backward, Rename, Delete, Copy, Save as Custom Template.
-
New Simple graphics skin added with updated and more customizable elements.
-
Device selection has changed throughout the program. Devices are displayed in a better format and matches the selectors in HS4 to make it easier to find a device.
-
Device lists can now include the device reference #. This can sometimes make is easier to find a specific device feature.
-
The Windows client now includes a new WebView control that is based on the Edge browser. This allows for displaying any type of web content.
-
Variables have been added and may be used in place of explicit references to cameras, devices, and labels. This allows for very dynamic screens and can reduce your screen count.
-
New replacement variable "$LASTCHANGE" will display the last change of a device.
-
Screens can now be into groups for better organization. Groups will display on the screens menu. The screens menu is now alpha sorted.
-
New action to set the color of a color bulb.
-
Screens can now be set to a height greater than the actual screen. The screen can then be scrolled.
-
On Windows CONTROL-R can be used to run the Windows client.
-
New property on a screen that will stop that screen from returning to the main screen.
-
When dragging the corner of an element, hold down the shift key to keep the aspect ratio.
-
Clicking on an element in the elements palette now displays the resolution of the element.
-
When moving an element with the control arrows, holding the Control key moves it by 10 pixels rather than 1.
-
For IOS, deployment options added for IPhone 14.
-
Many bug fixes throughout the program
-
Updated clients are required for Android and IOS, which are named HS4Touch.
Screen Shots
|

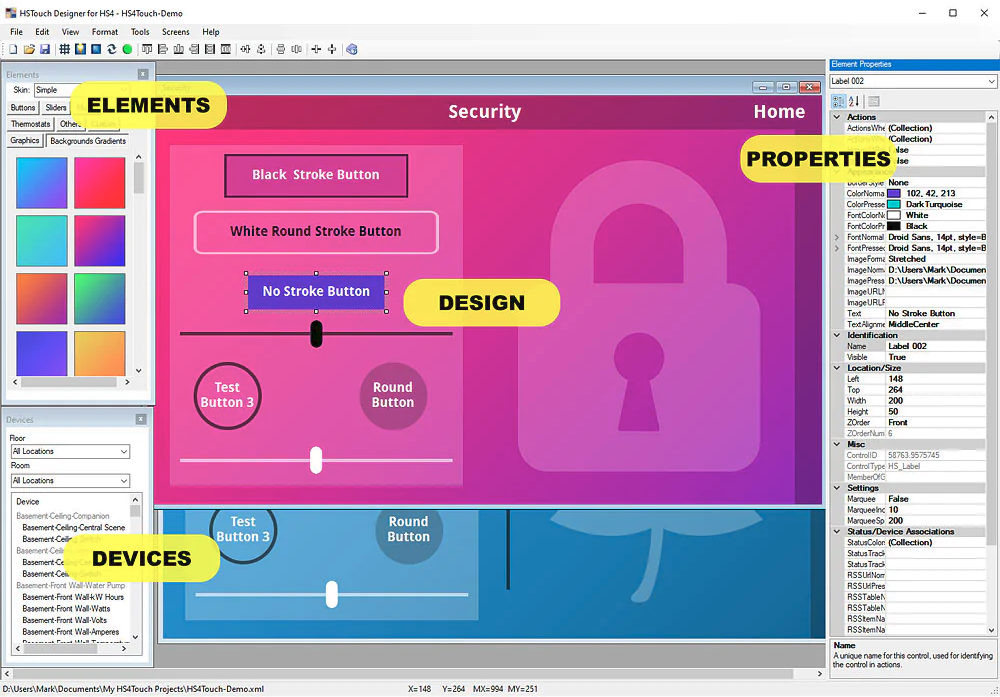

Design Area |

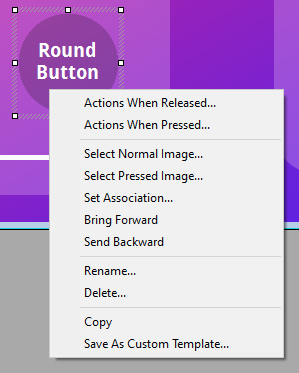

Elements Right-Click Menu |

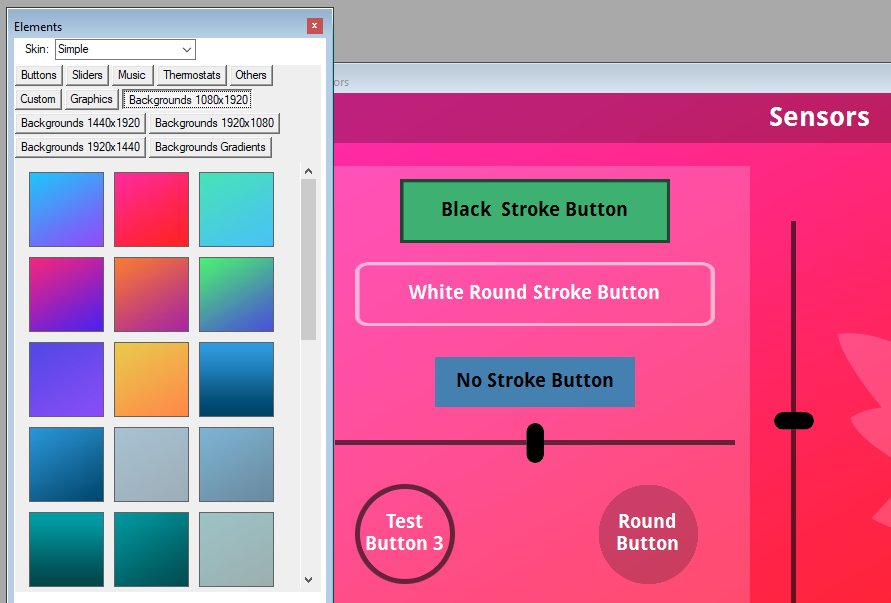

Elements Palette |
|---|---|---|
|
|
|
|
