LS100 G8 User Guide
Installation and setup guide for the LS100 G8 Z-Wave water leak sensor
Overview

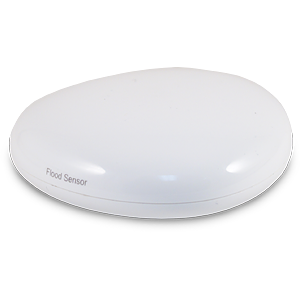

LS100 G8 is a compact, easy to install leak sensor. It is designed to control other Z-Wave devices directly or it may be used with a variety of Z-Wave certified home controllers to launch automation events or scenes.
Applications
Use to activate Z-Wave devices such as sirens or water valve controllers when a leak is sensed.
Use to trigger home automation events (aka “automations”) when a leak is sensed
Configuration
LS100 G8 is battery powered and includes a Z-Wave network button, LED indicator and a magnetic wall mount/wired probe assembly. The unit may be deployed as a free-standing sensor (using built-in probes) or as a wired remote sensor (via the wall mount/wired probe assembly).
Physical Installation
Free-standing installation Simply place the leak sensor on a flat horizontal surface in the area where a leak might occur.
Remote installation Install the included magnetic wall mount/wired probe assembly in the location of your choice (using the supplied mounting hardware) and attach the LS100 G8 to it by aligning the 3 probes with the 3 holes in the mounting bracket. Position and install the wired probe in the area where a leak might occur or where you wish to detect liquid.
Z-Wave Network Installation
Remove the back cover by rotating counter-clockwise and install 1 ER14250 battery (included) inside LS100 G8. Include the sensor into your Z-Wave network using the instructions below. Then, replace the back cover.
LS100 G8 may be included into your Z-Wave network as a “secure” device or as a “non-secure” device. Use the instructions below to include or exclude LS100 G8 to/from your Z-Wave network. If your home controller supports “S2” security encryption, the Leak Sensor may be added as a ‘secure’ device to your network. If not, it will add as a non-secure device. This will not effect the functionality of the unit.
Inclusion
Put your home controller into Z-Wave ‘inclusion’ mode.
Quickly press and release the Z-Wave network button once. Wait for the inclusion process to finish.
Exclusion
Put your home automation controller into Z-Wave ‘exclusion’ mode.
Quickly triple-press the Z-Wave network button. Wait for the exclusion process to finish.
Factory Reset (Use this procedure to reset LS100 G8 to factory settings when the Z-Wave controller is missing or inoperable).
Press and hold the Z-Wave button for 20 seconds. Release the button once the LED stops blinking and glows solidly.
Operation
Leak Sensor Operation
LS100 G8 is designed to transmit a Z-Wave command when liquid is sensed. It will also transmit another command when liquid is no longer sensed.Shock Sensor Operation
The shock sensor is designed to transmit a Z-Wave command when LS100 G8 has been physically moved. This sensor is especially helpful in determining whether the unit has been removed from its mount or tampered with.
Z-Wave Association Information
LS100 G8 supports Group 1 association. Group 1 reports the sensor’s status and battery if running on batteries.
Z-Wave Parameters
Use the parameters below to adjust HS-LS100 configuration settings
Parameter | Description | Bytes | Value | Default |
|---|---|---|---|---|
14 | Enable / Disable Basic Set Command | 1 | 0=disable, 1=enable | 0 |
15 | Set Value for Basic Set Command | 1 | 0=Sends 255 value when leak sensed | 0 |
16 | Temperature Offset | 2 | Available: 0 to 360 | 0 |
17 | Leak Report Interval | 1 | 0=disable, 1 to 255 (minutes) | 5 |
18 | Enable Shock Sensor | 1 | 0=disable, 1=enable | 1 |
19 | Temperature Report Interval | 1 | 3 to 240 (multiply by 10 for minutes: 3 = 30 min) | 144 |
20 | Set High Temperature Trigger Value | 2 | -670 to 2570 (-67 to 257 °F) | 1040 |
21 | Set Low Temperature Threshold Value | 1 | Available: 0 to 180 (0 to 18 °F) | 180 (18 °F) |
22 | Set Low Temperature Trigger Value | 2 | -670 to 2570 (-67 to 257 °F) | 320 |
24 | Enable Blinking LED When Alarm Triggers | 1 | 0=disable, 1=enable | 1 |
32 | Set Value for Low Battery | 1 | 10-50 (%) | 20 |
33 | Battery Level Report Interval | 1 | Available: 0-168 (hours) | 4 |
Specifications
Operating Temp Range | 0ºC to 40ºC |
|---|---|
Z-Wave Frequency | Range | 908 MHz (US) | Up To 300 Ft line of sight |
Z-Wave Certification | Z-Wave Plus LR |
Power Supply | Requires (1) ER14250 Battery |
Dimensions | Sensor (main unit): 2.75 x 2.75 x .75 (inches) |
Limited Warranty
HomeSeer Technologies, LLC will repair or replace, at its option, any part of the device, which proves to be defective in workmanship or material under normal use, in the USA except in the states of Alaska or Hawaii, for a period of one year from the date the device is purchased. During the warranty period, HomeSeer Technologies, LLC will repair and provide all parts necessary to correct such defects, free of charge, provided the device has been operated in accordance with the manufacturer's guidelines. The Customer will return the device to HomeSeer Technologies, LLC for testing and repair or replacement. Should you need service, during warranty period or beyond, contact HomeSeer to obtain return authorization before shipping your device to HomeSeer Technologies, LLC.
