Specs for the Z-NET PRO
Specs
|
Specification |
Details |
|---|---|
|
Product Type |
Network-connected Z-Wave & Zigbee interface |
|
Z-Wave |
800 Series Z-Wave Plus V2 |
|
Z-Wave Long Range |
Yes |
|
Zigbee |
Zigbee 3.0 (EmberZNet) |
|
Network Connection |
DHCP | See Z-NET PRO IP Address Reservation Guide for setting a static IP |
|
Connectivity |
Ethernet (10/100), Wi-Fi (2.4 GHz, WPA2 Encryption) |
|
Power |
5V / 2.0 A USB-C power adapter (included) |
|
Operating Temperature |
0°C–40°C (32°F–104°F) |
|
Configuration |
Built-in web interface |
|
Status Indicators |

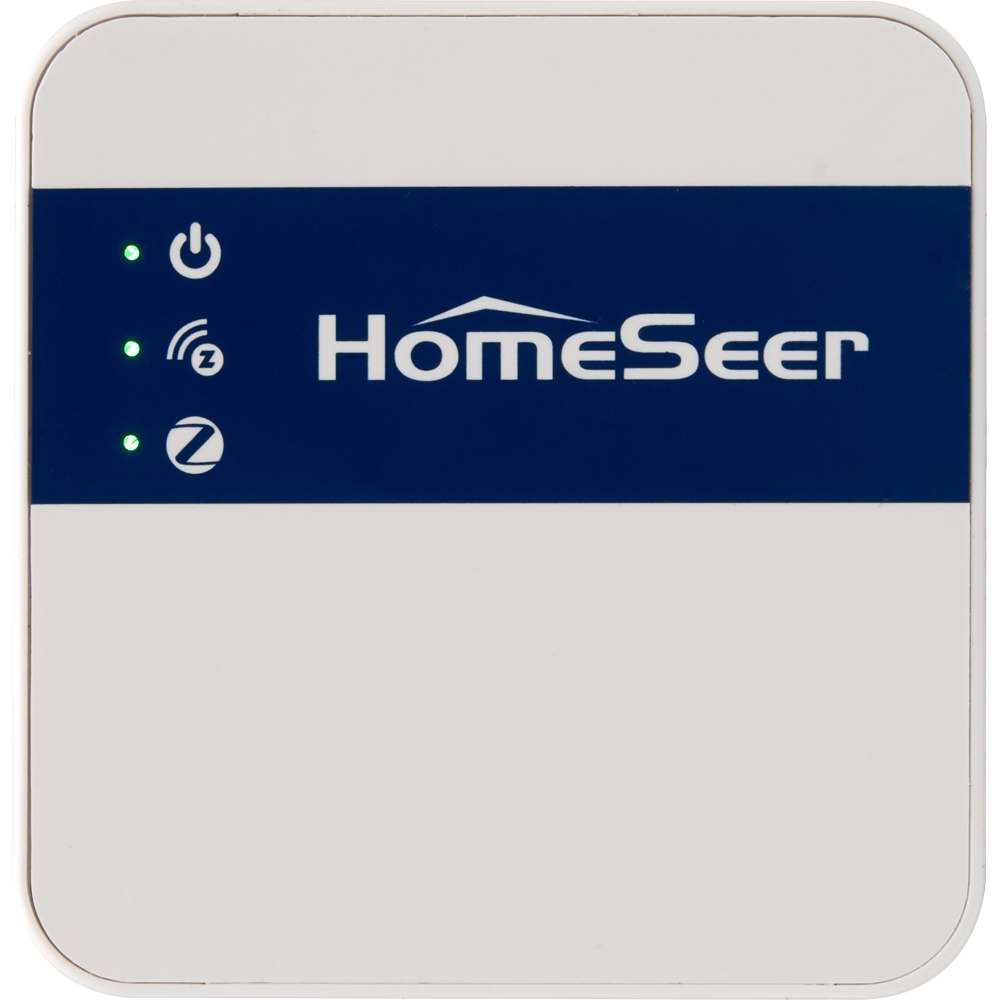

LED indicators for power, network activity, Z-Wave and Zigbee status |
Protocol Support
Z-Wave
-
Radio: 800 Series
-
SDK: 7.23.4
-
Range: Mesh - up to 300 ft (91 m) | Long Range - Up to 1 mile (1.6 km)
-
Supports: Z-Wave Plus V2, SmartStart, S2 Security, Network Wide Inclusion
Zigbee
-
Protocol: Zigbee 3.0
-
Stack: EmberZNet
-
Firmware: 8.0.2
-
Range: up to 300 ft (91 m)
Compatibility
The Z-NET PRO works with:
-
HomeSeer HS4
-
Home Assistant
-
Z-Wave JS
-
Z-Wave JS UI
-
ZHA
-
-
openHAB
-
Zigbee2MQTT
